Straight tuck end boxes, Free format selection
Artwork information Straight tuck end boxes, Free format selection
Free format selection
Resolution at least 300 dpi for an original image size of.
Include a surrounding trim of 3 mm, important information should be at least 4 mm from the edge of the final format size
Maximum colour application of 300%
Fonts must be completely imbedded or converted to curves.
colour mode CMYK, FOGRA51 (PSO coated v3) for coated paper, FOGRA52 (PSO uncoated v3 FOGRA52) for uncoated paper
The print design must protrude 3 mm into the inner edge of the adhesive flap (overfill); the rest of the adhesive flap must remain unprinted.
Black elements must be created with 100 % black only (e.g. barcodes such as EAN, QR-codes, text etc.)
We will not check for spelling and/or typographical errors.
We will not check for overprint settings.
Transparencies created with CorelDRAW must be reduced.
Comments will be deleted and not printed.
Form field content will be printed.
Product details

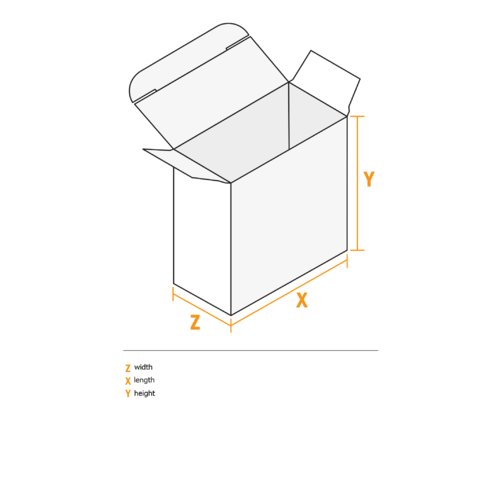

The body of the box is glued; the top and bottom tuck flaps are on the same side.
standard: ECMA A2320 / A20.20.01.01
easy to open and close again thanks to tuck flaps
easy to fill
easy to stack and therefore ideal for transport and presentation
The flaps at the bottom and top each have one tuck flap and two dust flaps.
To close the box, first fold in both dust flaps and then the tuck flap.
The tuck flaps at the bottom and top fold in the same direction.
Packaging can be printed all over as information and/or advertising space.
delivery: glued and flat
