Scaffold banners, 65.0 x 406.0 cm


















Data sheet Scaffold banners, 65.0 x 406.0 cm

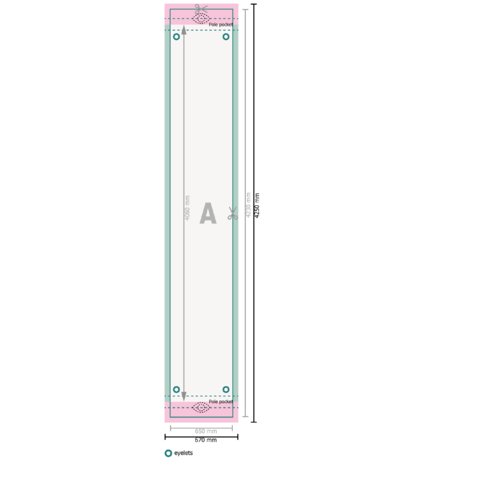

Data format (incl. 10.00 mm bleed): 67.00 x 425.00 cm
Trimmed size: 65.00 x 423.00 cm
Visible area: 65.00 x 406.00 cm

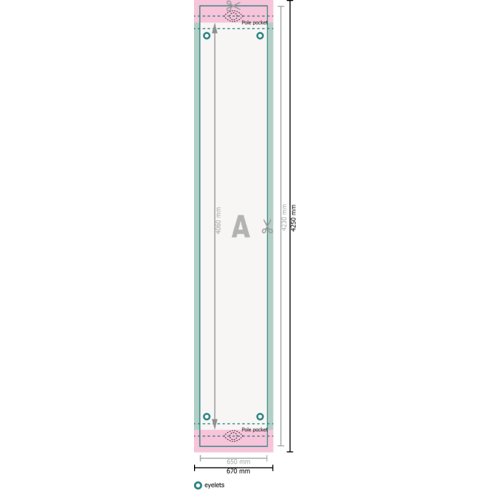

Data format (incl. 10.00 mm bleed): 67.00 x 437.00 cm
Trimmed size: 65.00 x 435.00 cm
Visible area: 65.00 x 406.00 cm
Resolution at least 150 dpi for an original image size of
You can find more information regarding the trim under the „Details” tab.
Fonts must be completely imbedded or converted to curves.
colour mode CMYK as with FOGRA51 (PSO Coated v3)
Maximum colour application of 300%
We will not check for spelling and/or typographical errors.
We will not check for overprint settings.
Transparencies created with CorelDRAW must be reduced.
Comments will be deleted and not printed.
Form field content will be printed.
Print templates

Product details
Single-sided colour print (4/0) back blank

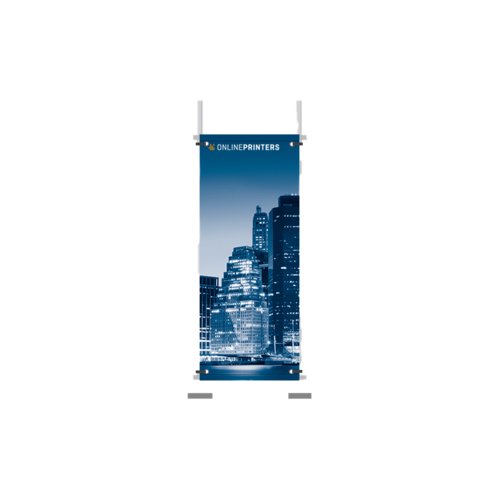

classic advertising space for standard scaffolding
65 x 406 cm banners for the sides of the scaffold
long enough to cover two scaffold levels; fits into side bays with standard frame widths
Printed on 500 gsm heavy-duty tarp material (fire resistance rating “B1 (self-extinguishing)” according to DIN 4102)
Optionally available 300 gms mesh fabric tarps (fire resistance rating “B1 (self-extinguishing)” according to DIN 4102)
Absolutely weather-resistant and therefore also suitable for outdoor use.
Washable
pole pocket along the top and bottom edge, optionally 6 or 12 cm, measured flat
including 4 eyelets in the corners to easily secure the banner
Only one motif can be uploaded for each print order.
