Gable boxes with 1-2-3 bottom
Artwork information Gable boxes with 1-2-3 bottom
- free format selection
- Special requirements for creating the artwork:
- The print design must protrude 3 mm into the inner edge of the adhesive flap (overfill); the rest of the adhesive flap must remain unprinted.
- black elements must be created with 100 % black only (e.g. barcodes such as EAN, QR-codes, text etc.)
- Include a surrounding trim of 3 mm, important information should be at least 4 mm from the edge of the final format size
- Resolution: 300 dpi
- Fonts must be completely imbedded or converted to curves
- colour mode: CMYK, FOGRA51 (PSO coated v3) for coated paper, FOGRA52 (PSO uncoated v3 FOGRA52) for uncoated paper
- Maximum colour application of 300 %
- We will not check for spelling and/or typographical errors
- We will not check for overprint settings
- Transparencies created with CorelDRAW must be reduced
- Comments will be deleted and not printed
- Form field content will be printed
Print templates
Product details
- Four-colour print on the front, reverse blank (4/0)

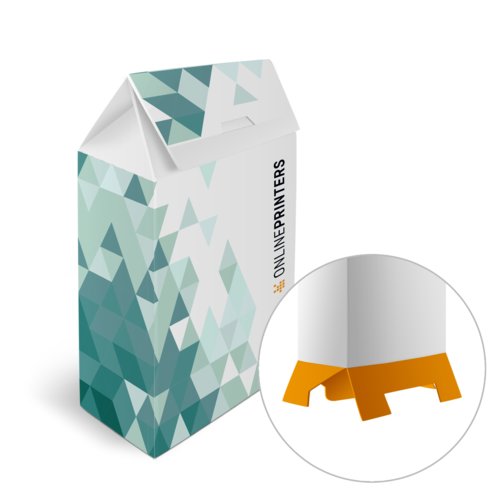

- attractive boxes with tapered closure and sturdy 1-2-3 bottom
- standard: ECMA A55.75.01.03
- quick and easy to assemble thanks to sturdy 1-2-3 bottom:
- 1) Fold in the dust flaps on the lid, put the large flap over and push into the slot to close.
- 2) Interlock the four tabs of the 1-2-3 bottom with each other when setting up the box.
- easy to open and close again
- easy to fill, also through the 1-2-3 bottom
- all-over printed as information and/or advertising space
- glued: dots along the long seam of the body
- delivery: glued and flat
- Please observe the data sheet.
